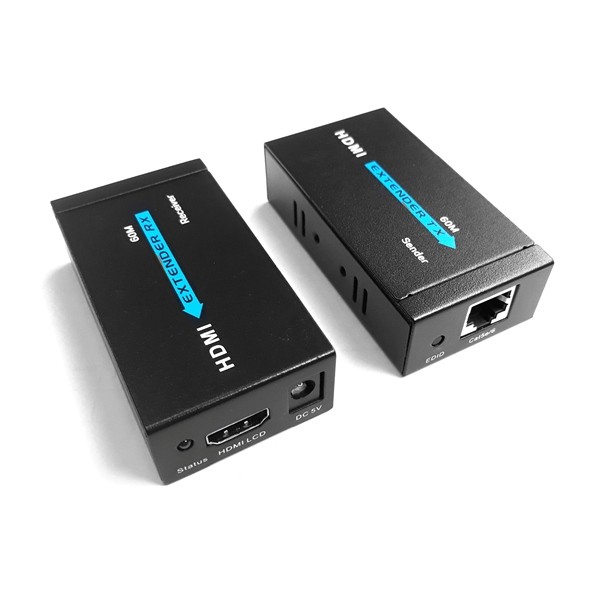

Moltiplicatore HDMI Extender su LAN Tx e Rx Cat-5e/6 60M - 89091-HDMI60M

Features

Support HDMI1.4A

Support 3D

Support Hightest video resolution 1080p/60Hz

Support 1.65Gbps data rate and tmds clock up to 165MHz

Support 8/10/12bit deep color

Support AWG26 HDMI Standard cable, input up to 15 metres, output up to 20 metres

Signal transmission by using catble cat-5e or cat-6 ( recommended ) cable instead of HDMI Cable, it can extend the distance up to 60 meters between TX and RX.

No loss of quality

Install in minutes

Need DC5V/1A Power Supply

Operating and Connecting

1. Connect one HDMI cable between source device and TX Extender, the max cable distance is 15 meters.

2. Connect one HDMI cable between display device and RX Extender, the max cable distance is 20 meters.

3. Connect single cat-5e or cat-6 ( recommended ) cables instead of HDMI cables between TX and RX Extender, the max cable distance is 60 meters.

4. Connect 5V Power supply to the TX and RX.

5. Reset button : The button can support the witch of EDID between 2D and 3D.( 3D is the default EDID when the power is on).

Specifications :

Length of CAT-6/CAT-5E cable between Rx and TX Up to 60 meters.

HDMI Input 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support Audio Input DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD

HDMI Output 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support Audio Output DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD

Max bandwidth 165MHz

Max baud rate 1.65Gbps

Input Video Signal 0.5-1.5Voltsp-p

Output DDC signal 5 Volts p-p(TT1L)

Input HDMI cable distance = 15m AWG26 HDMI standard cable

Output HDMI cable distance = 20mAWG26 HDMI standard cable

TX Max working current 510mA

RX Max working current 100mA

Power Adapter Format Input:AC(50HZ,60HZ) 100-240V; Output : DC5V/1A

Operating temperature range (-15to+55°C)

Operating Humidity Range 5 to 90%RH(No Condensation)

Dimension ( LxWXH) 82*55*22(mm)

TX Weight 125g

RX Weight 125g

The package includes :

1. TX Extender: 1pc

RX Extender : 1pc

2. 5V DC Power adaper x 2pcs

3. User Manual
