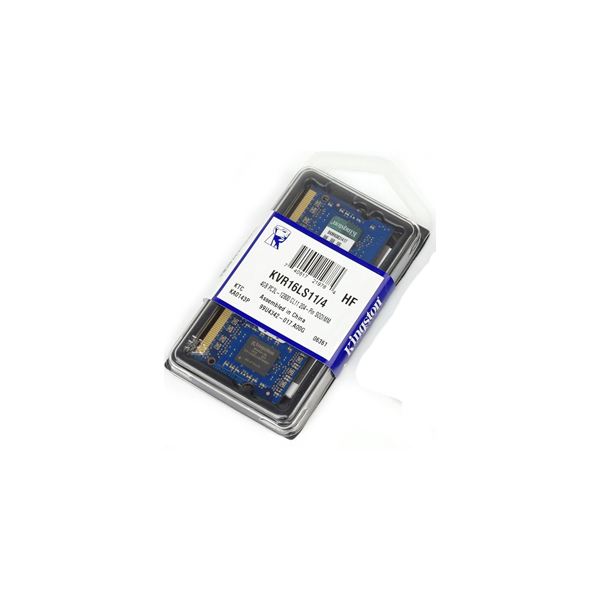

KVR16LS11/4
4GB 1Rx8 512M x 64-Bit PC3L-12800
CL11 204-Pin SODIMM

SPECIFICATIONS
CL(IDD) 11 cycles
Row Cycle Time (tRCmin) 48.125ns (min.)
Refresh to Active/Refresh 260ns (min.)
Command Time (tRFCmin)
Row Active Time (tRASmin) 35ns (min.)
UL Rating 94 V - 0
Operating Temperature 0o
C to 85o
C
Storage Temperature -55o C to +100o
C

DESCRIPTION
This document describes ValueRAM's 512M x 64-bit (4GB)
DDR3L-1600 CL11 SDRAM (Synchronous DRAM), 1Rx8, low
voltage, memory module, based on eight 512M x 8-bit FBGA
components. The SPD is programmed to JEDEC standard
latency DDR3-1600 timing of 11-11-11 at 1.35V or 1.5V. This
204-pin SODIMM uses gold contact fingers. The electrical and
mechanical specifications are as follows:

FEATURES
? JEDEC standard 1.35V and 1.5V Power Supply
? VDDQ = 1.35V and 1.5V
? 800MHz fCK for 1600Mb/sec/pin
? 8 independent internal bank
? Programmable CAS Latency: 11, 10, 9, 8, 7, 6, 5
? Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
? 8-bit pre-fetch
? Burst Length: 8 (Interleave without any limit, sequential with starting
address “000” only), 4 with tCCD = 4 which does not allow seamless
read or write [either on the fly using A12 or MRS]
? Bi-directional Differential Data Strobe
? Internal(self) calibration : Internal self calibration through ZQ pin
(RZQ : 240 ohm ± 1%)
? On Die Termination using ODT pin
? Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at
85°C < TCASE = 95°C
? Asynchronous Reset
? PCB: Height1.18” (30mm), double sided component
? Lead Free RoHS Compliant
