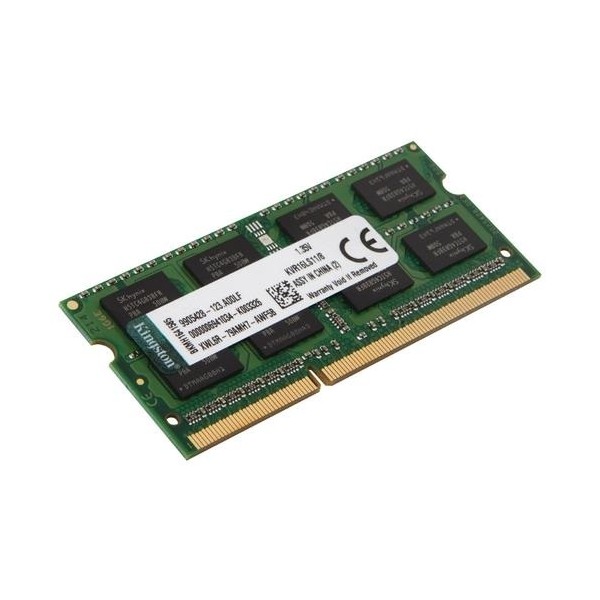

KVR16LS11/8
8GB 2Rx8 1G x 64-Bit PC3L-12800
CL11 204-Pin SODIMM

DESCRIPTION:
This document describes ValueRAM's 1G x 64-bit (8GB)
DDR3L-1600 CL11 SDRAM (Synchronous DRAM), 2Rx8, low
voltage, memory module, based on sixteen 512M x 8-bit FBGA
components. The SPD is programmed to JEDEC standard
latency DDR3-1600 timing of 11-11-11 at 1.35V or 1.5V. This
204-pin SODIMM uses gold contact fingers. The electrical and
mechanical specifications are as follows:
FEATURES
• JEDEC standard 1.35V and 1.5V Power Supply
• VDDQ = 1.35V and 1.5V
• 800MHz fCK for 1600Mb/sec/pin
• 8 independent internal bank
• Programmable CAS Latency: 11, 10, 9, 8, 7, 6, 5
• Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
• 8-bit pre-fetch
• Burst Length: 8 (Interleave without any limit, sequential with
starting address “000” only), 4 with tCCD = 4 which does not
allow seamless read or write [either on the fly using A12 or
MRS]
• Bi-directional Differential Data Strobe
• Internal(self) calibration : Internal self calibration through ZQ
pin (RZQ : 240 ohm ± 1%)
• On Die Termination using ODT pin
• Average Refresh Period 7.8us at lower than TCASE 85°C,
3.9us at 85°C < TCASE < 95°C
• Asynchronous Reset
• PCB: Height 1.18” (30mm), double sided component
Document No. VALUERAM1348-001.C00 05/10/2021 Page 1
Memory Module Specifi cations
Continued >>
SPECIFICATIONS
CL(IDD) 11 cycles
Row Cycle Time (tRCmin) 48.125ns (min.)
Refresh to Active/Refresh 260ns (min.)
Command Time (tRFCmin)
Row Active Time (tRASmin) 35ns (min.)
UL Rating 94 V - 0
Operating Temperature 0o
C to 85o
C
Storage Temperature -55o C to +100o
C
